Production process

Design and manufacture of billets for composite plates

According to the specifications of carbon steel and stainless steel raw materials, the process parameters of rolling mill and heating system to reasonably design the combination ratio of composite billet, in order to obtain the precise size of the finished composite plate, composite billet manufacturing process involves raw material surface processing, vacuum welding technology, isolation and vacuum technology, to ensure that the composite interface of the good physical process properties.

Heating of composite slabs

The composite billet is usually heated in the push steel type or step continuous heating furnace, thicker specifications of the composite plate will also enter the even heat furnace for even heat.

Composite plate rolling with larger undercut and compression ratios

All kinds of container composite plate using controlled rolling and controlled cooling process to ensure the physical properties of the product. The thicker specifications of the composite plate will also be normalized through the normalization furnace.

Composite plate finishing and inspection

The composite plate is cut into the required length and width dimensions by shears or plasma, and is to be straightened using a roll-type cold-straightening machine or press, which requires large straightening machinery.

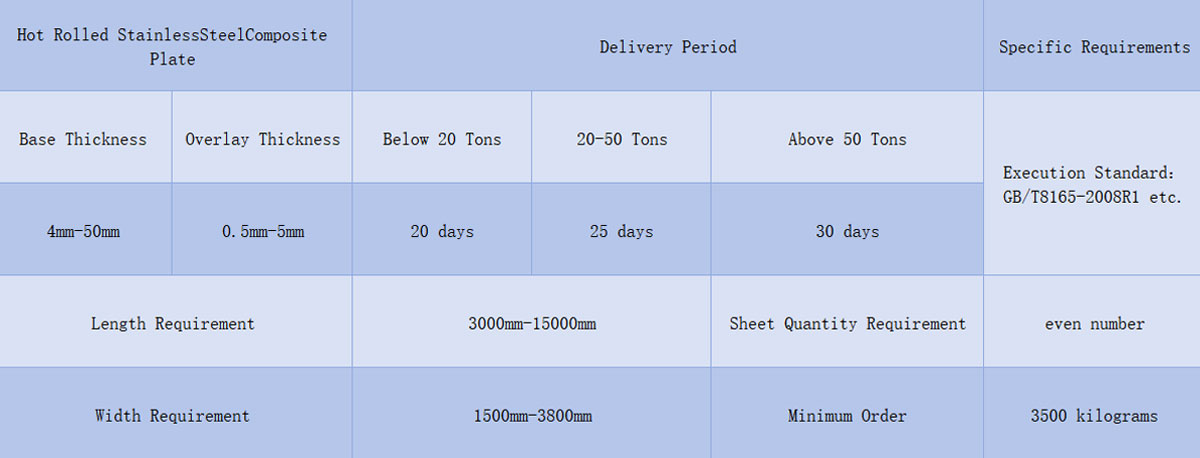

Customized Requirements

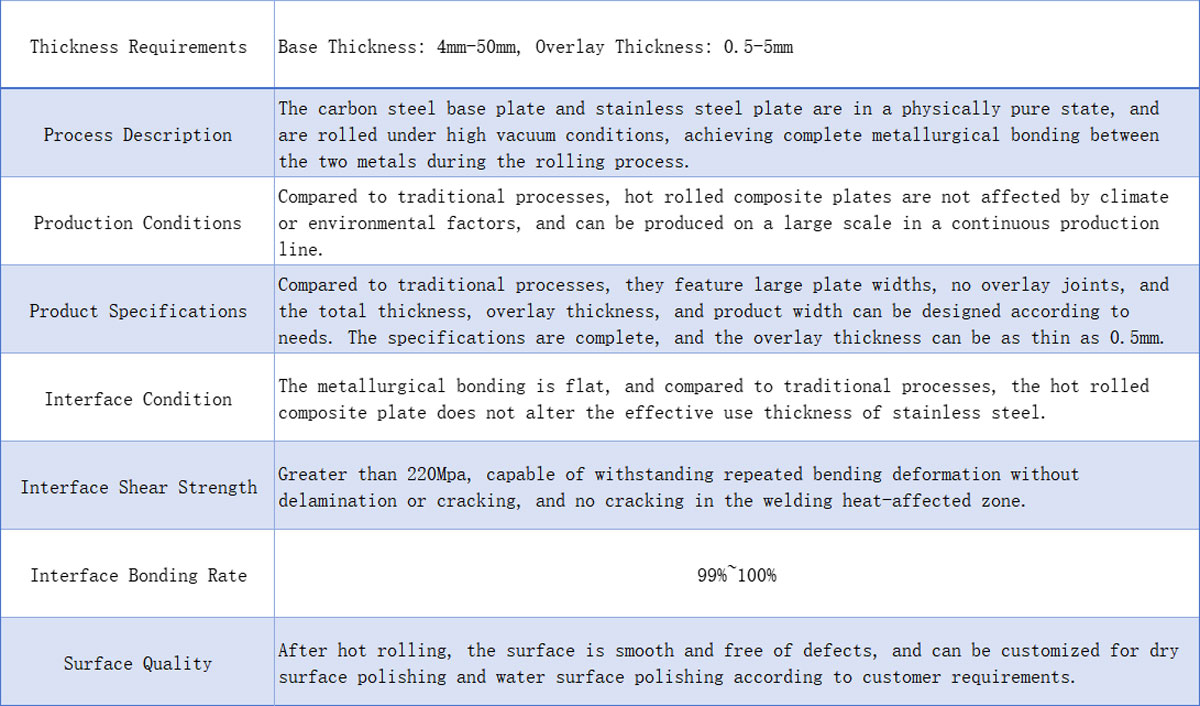

Parameter description
